Car touch products

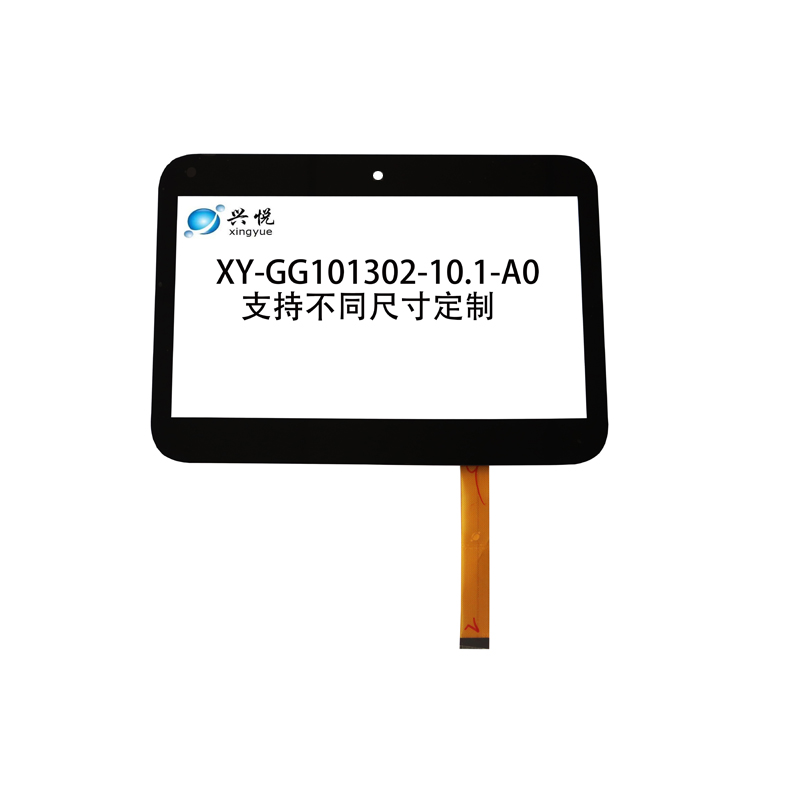

XY-GG101302-10.1-A0

产品项目	车载应用触摸屏 XY-GG101302-10.1-AO
外形尺寸 Outline Dimension	245.7*175.8+/-0.1/mm
线路外形 Sensor Dimension	234*142+/-0.2/mm
可视区 View Area	222.92*125.48+/-0.2/mm
FPC length	96.2+/-0.5/mm
产品厚度 Product Thickness	2±0.1(不含背胶）/mm
第一层结构First Layer Structure	玻璃盖板厚度:T=1.1mm+/-0.05
第二层结构Second Layer Structure	ITO 玻璃(Glass) 厚度:T= 1.1 mm
出线方式Tail type	FPC(COF) 镀金Gold-Plated
底胶Bottom Tape	材料：背胶厚度为:0.175
环境参数environmental parameters	使用温度范围:常温保存温度范围: 22±3度
电压 voltage	Min: 1.8V Type:3.3V Max:3.5V
电流 Current	工作电流Normal mode: 12mA(Max) 休眠电流 Sleep mode: 50uA(Max)
IC 型号IC NO	GT911
表面硬度Surface hardness	硬度 6H
全光线透过率Total light transmittance	83% MIN

Product description Specifications
