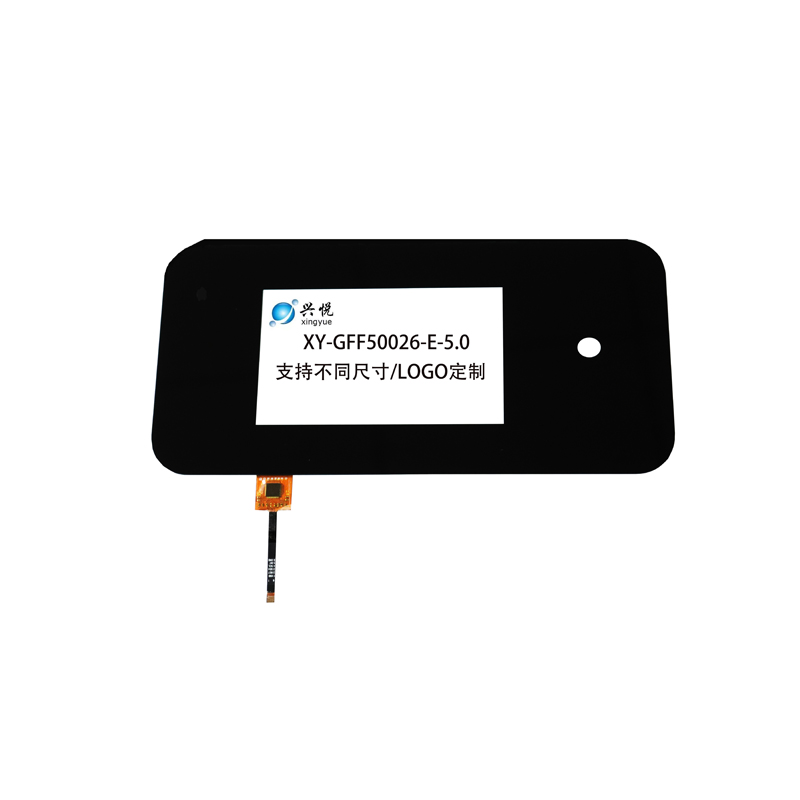

XY-GFF50026-5.0-E

产品项目	医疗应用触摸屏XY-GFF50026-5.0-E
外形尺寸 Outline Dimension	227.5*112.1+/-0.20/mm
线路外形 Sensor Dimension	119*81+/-0.2/mm
可视区 View Area	108.6*65.4+/-0.2/mm
FPC length	96.75+/-0.5/mm
产品厚度 Product Thickness	1.5±0.1(不含辅料)/mm
第一层结构First Layer Structure	GLASS 厚度:T=1.1 mm+/-0.05
第二层结构Second Layer Structure	ITO膜) 厚度:T= 0.425 mm
出线方式Tail type	FPC(COF) 镀金Gold-Plated
底胶Bottom Tape	材料：背胶厚度为:T=0.25mm
环境参数environmental parameters	使用温度范围:-20～70℃,20～90% RH 保存温度范围: -30～80℃,20～90% RH
电压 voltage	Min: 1.8V Type:3.3V Max:3.5V
电流 Current	工作电流Normal mode: 12mA(Max) 休眠电流 Sleep mode: 50uA(Max)
IC 型号IC NO	GT911
表面硬度Surface hardness	硬度 6H
全光线透过率Total light transmittance	83% MIN

Product description Specifications
